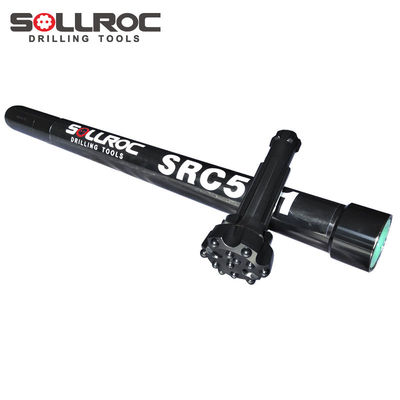

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

ได้รับการรับรอง
จีน Changsha Sollroc Engineering Equipments Co., Ltd รับรอง
จีน Changsha Sollroc Engineering Equipments Co., Ltd รับรอง
ความคิดเห็นของลูกค้า
ฉันได้รับหมัดและชิ้นของฉัน มันดูน่าทึ่ง มันทํางานได้ดีหลังจากที่เราใช้มัน ขอบคุณมาก

—— จอห์น หลุยส์

ผมขอแนะนําสินค้าของบริษัทนี้ 110% เพราะในอดีตผมได้รับผลดีจากพวกเขา 100%

—— วีซ่า วาตาเนน

สนทนาออนไลน์ตอนนี้ฉัน

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling
3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

ภาพใหญ่ :  3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

รายละเอียดสินค้า:
สถานที่กำเนิด: ฮันันประเทศจีน
ชื่อแบรนด์: SOLLROC
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1
ราคา: $1,000

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

ลักษณะ
น้ำหนัก: 29 กิโลกรัม วัสดุ: เหล็กคาร์บูไรซ์
ขนาดค้อน: 3 นิ้ว ด้าย: 3 '' remet
เส้นผ่าศูนย์กลางภายนอก: 81 มม ความยาว: 1069 มม.
ช่วงรู: 84-105 มม. ความดันอากาศ: ความกดอากาศสูง
แรงกดดันในการทำงาน: 1.5-3.5Mpa อัตราผลกระทบ: 30Hz ที่ 2.4MPA
ความเร็วในการหมุน: 25-40 รอบ/นาที การใช้อากาศ: 7-14 m³/min
ก้านบิต: SRC531 เธรดการเชื่อมต่อ: 3 '' remet
ประเภทเครื่องจักร: เครื่องมือขุดเจาะ
เน้น:

3 inch Down The Hole Hammer

,

1069mm Length Down The Hole Hammer

,

81mm External Diameter Down The Hole Hammer

High Air Pressure SRC531 RC Reverse Circulation Hammer
Company Introduction
  • Our factory has specialized in manufacturing drilling tools and spare parts for over 10 years
  • We utilize advanced technology and equipment
  • Our technicians have more than 13 years of professional experience
Product Introduction

Reverse circulation drilling efficiently collects uncontaminated samples by transporting them through a hollow pipe system. This method prevents sample contamination from surface materials, ensuring accurate geological analysis.

Technical Specifications
Length (less bit) Weight (less bit) External Diameter Bit Shank Hole Range Connection Thread
1069mm 29.0kg 81mm SRC531 84-100 3''Remet
Working Pressure Impact Rate at 2.4Mpa Recommended Rotation Speed Air Consumption
1.5-3.5Mpa 30HZ 25-40r/min 1.7Mpa: 7 m³/min 2.4Mpa: 10 m³/min 3.0Mpa: 14 m³/min
Product Advantages
  • Reduces overall drilling costs by up to 40% compared to conventional methods
  • Delivers faster results with quick completion of drilling process
  • Safe operation requiring fewer man hours
  • Lower water consumption than other mining methods
  • Simple and easy operation
  • Efficient sample organization with depth and location tracking for precise mineral deposit identification
3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 0 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 1
Delivery & Packaging

Available shipping methods: By sea, by air, or by express

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 2 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3
Packaging Options
  • Plywood cases
  • Plywood cases with pallet
